品牌/Brand：NTH
四爪楔形中實動力夾頭，適用于夾持不規則工件。
夾頭滑動面經硬化處理及精密研磨，并直接潤滑。
高剛性、高精度及高轉速。
It‵s wedge-hook type 4 jaw closed center power chuck. Suitable for irregular workpiece.
Matching surfaces of all parts are hardened, ground and lubricated directly.
Construction of high rigidity and high clamping accuracy and high rotary speed.
尺寸單位/Size unit: mm
|
規格 Spec 型號 Model |
楔心行程 Plunger stroke mm |
爪行程直徑 Jaw stroke Dia. mm |
容許油壓缸推力 Max.D.B.Pull kgf |
最大夾持力 Max clamping force kgf |
最高轉速 Max RPM |
|---|---|---|---|---|---|
| 4T-206 A5 | 20 | 9.2 | 17.9(1830) | 52.4(5350) | 5250 |
| 4T-208 A5 | 21 | 9.7 | 25(2550) | 74.5(7600) | 4750 |
| 4T-208 A6 | 21 | 9.7 | 25(2550) | 74.5(7600) | 4750 |
| 4T-210 A6 | 25 | 8.8 | 28.9(2950) | 107.8(11000) | 4000 |
| 4T-210 A8 | 25 | 8.8 | 28.9(2950) | 107.8(11000) | 4000 |
| 4T-212 A8 | 30 | 10.5 | 41(4180) | 155.8(15900) | 3000 |
| 4T-215 A11 | 35 | 16 | 82(8360) | 248.4(25350) | 3000 |
| 4T-218 A11 | 35 | 18.7 | 96(9687) | 248.4(25350) | 2000 |
| 4T-224 A15 | 35 | 18.7 | 82(8360) | 273(27838) | 1520 |
| 4T-232 A15 | 35 | 18.7 | 82(8360) | 215(21924) | 920 |
|
規格 Spec 型號 Model |
夾持直徑 Chucking Dia mm |
慣性矩 I kg*m2 |
重量 Weight kg |
帶法蘭重量 Weight(Ad.) kg |
適合油壓缸 Matched cylinders |
最大使用壓力 Max Pressure Mpa(kgf) |
|---|---|---|---|---|---|---|
| 4T-206 A5 | 14-165 | 0.05 | 13 | 14 | S-100 | 3.0(30) |
| 4T-208 A5 | 17-210 | 0.14 | 24 | 28 | S-125 | 2.6(25) |
| 4T-208 A6 | 17-210 | 0.14 | 24 | 27 | S-125 | 2.6(25) |
| 4T-210 A6 | 22-254 | 0.3 | 35 | 42 | S-125 | 3.0(30) |
| 4T-210 A8 | 22-254 | 0.3 | 35 | 40 | S-125 | 3.0(30) |
| 4T-212 A8 | 22-304 | 0.73 | 59 | 63 | S-150 | 3.0(30) |
| 4T-215 A11 | 50-371 | 1.95 | 100 | 107 | S-200 | 3.2(32) |
| 4T-218 A11 | 78-450 | 3.5 | 134 | 140.2 | S-200 | 3.2(32) |
| 4T-224 A15 | 152-610 | 7.81 | 235 | 244 | S-200 | 3.2(32) |
| 4T-232 A15 | 100-810 | 31.2 | 400 | 416 | S-200 | 3.2(32) |
|

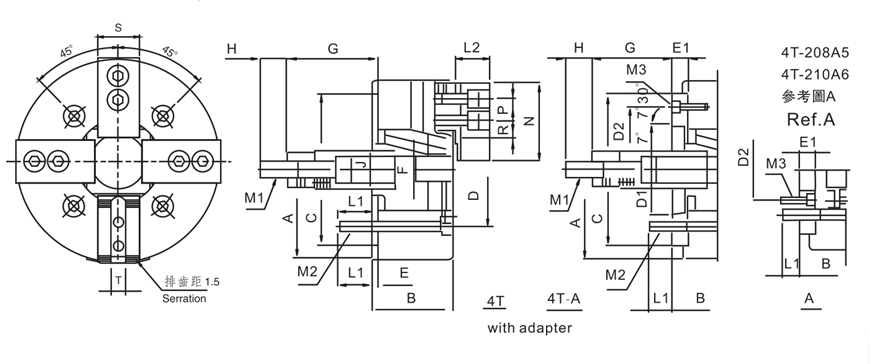

規格 Spec 型號 Model |
A | B | B | C(H6) | D | D1 | D2 | E | E1 | F | G max | G min | G max | G min | H | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4T-206 A5 | 165 | 74 | 84 | 140 | 104.8 | 82.56 | 116 | 5 | 15 | 21 | 101.5 | 86.5 | 87.5 | 66.6 | 35 | 34 |
| 4T-208 A5 | 210 | 85 | 103 | 170 | 133.4 | 82.56 | 104.8 | 5 | 23 | 25 | 127 | 104 | 106 | 83 | 35 | 38 |
| 4T-208 A6 | 210 | 85 | 97 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 25 | 127 | 110 | 106 | 89 | 35 | 38 |
| 4T-210 A8 | 254 | 89 | 102 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 34 | 158 | 140 | 133 | 115 | 35 | 45 |
| 4T-212 A8 | 304 | 106 | 118 | 220 | 171.4 | 140.72 | 190 | 6 | 18 | 34 | 163 | 145 | 133 | 115 | 35 | 50 |
| 4T-215 A11 | 381 | 114 | 130 | 300 | 235 | 196.87 | 260 | 6 | 22 | - | 104 | 82 | 69 | 47 | 55 | 60 |
| 4T-218 A11 | 450 | 114 | 130 | 300 | 235 | 196.869 | 260 | 6 | 22 | 60 | 92 | 70 | 57 | 35 | 55 | - |
| 4T-224 A15 | 610 | 125 | 146 | 380 | 330.2 | 285.775 | 330.2 | 6 | 27 | 60 | 97 | 70 | 62 | 35 | 55 | - |
| 4T-232 A15 | 810 | 135 | 156 |
380 |
330.2 | 285.775 | 330.2 | 6 | 27 | 60 | 74 | 47 | 39 | 12 | 55 | - |
|
規格 Spec 型號 Model |
L1 | L1 | L2 | M1 | M2 | M3 | N | P | R max | R min | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4T-206 A5 | 14 | 14 | 39 | M16×2 | 4-M10 | 4-M6 | 73 | 20 | 18 | 7.5 | 31 | 12 |
| 4T-208 A5 | 20 | 17 | 41 | M20×2.5 | 4-M12 | 6-M10 | 95 | 25 | 22.3 | 11.8 | 35 | 14 |
| 4T-208 A6 | 20 | 18 | 41 | M20×2.5 | 4-M12 | 4-M6 | 95 | 25 | 22.3 | 118 | 35 | 14 |
| 4T-210 A8 | 18 | 25 | 46 | M20×2.5 | 4-M16 | 4-M8 | 110 | 30 | 30.8 | 11.3 | 40 | 16 |
| 4T-212 A8 | 22 | 25 | 54 | M20×2.5 | 4-M16 | 4-M8 | 130 | 30 | 48.8 | 12.3 | 50 | 18 |
| 4T-215 A11 | 30 | 33 | 63 | M30×3.5 | 4-M20 | 4-M10 | 165 | 43 | 48.8 | 23.3 | 62 | 25.5 |
| 4T-218 A11 | - | 28 | 66.5 | M30×3.5 | 4-M20 | 4-M10 | 165 | 43 | 70.75 | 24.25 | 62 | 25.5 |
| 4T-224 A15 | - | 34 | 76 | M30×3.5 | 8-M24 | 4-M12 | 180 | 60 | 93.5 | 24.5 | 65 | 25 |
| 4T-232 A15 | - | 33 | 97 | M30×3.5 | 8-M24 | 4-M12 | 210 | 80 | 196.5 | 25.5 | 74 | 25 |
