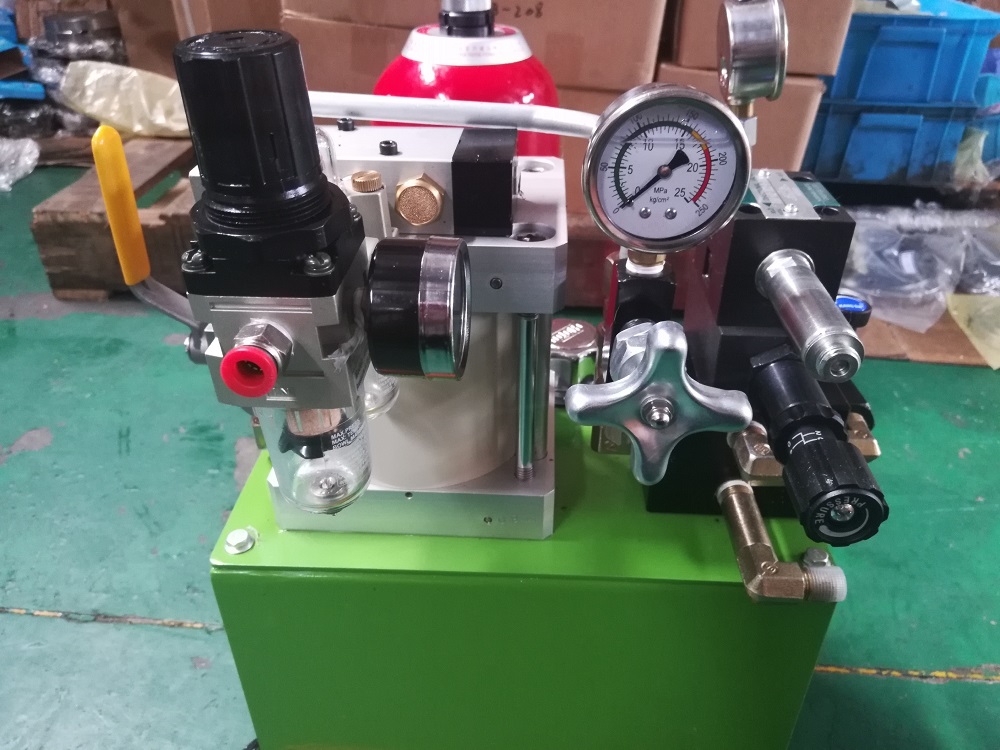

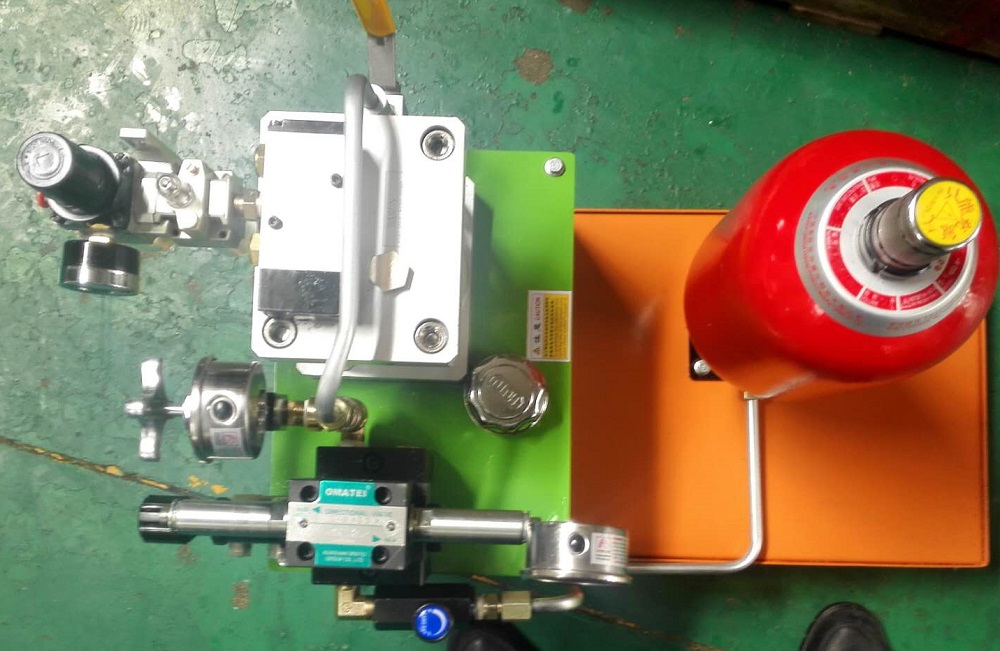

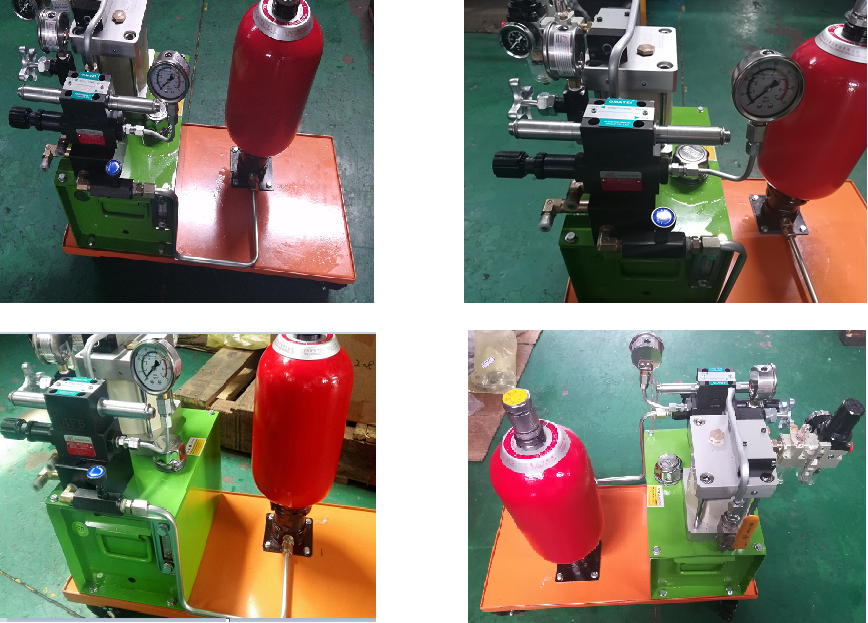

氣液增壓組合描述/ Pneumatic and hydraulic power unit pack Description:
本氣液增壓組合動力源為壓縮氣體,無需用電,節能環保,工作穩定,結構緊湊!
This air-oil power unit pack power source is compacted air, no need electricity, so it’s environmental and energy saving, its structure is integrated and working performance is stable.
氣液增壓組合基本參數/Technical data
1)油箱的有效容積/Tank Volume:15L
2)氣液增壓泵/Boost bump:LH25-18F19014
3)氣壓工作壓力/Air working pressure:0—0.6MPa
4)液壓工作壓力/Oil working pressure:11MPa
5)氣液比例/Air-Oil ratio:1/19
6)系統流量/Unit flow:2.5L/min
7)電磁閥/Solenoid:3C2-DC24V
8)工作介質溫度范圍/Working medium temperature:10-60℃
