類型：回轉式系列
Type: Live centers series
負荷：中
Duty: Medium

適 用：CNC車床、高速車床及其他機床。

Application: CNC lathe, high speed lathe and other lathe

用 途：適用小徑軸心長度300mm以內中車削加工。

Working Usage: Applicable for small diameter and length less than 300mm medium turning process

結 構：採用止推軸承、前后滾針軸承，兩個支撐點特殊設計製成。

Structure: Adopted thrust bearing and needle bearing at front and rear place, with the design of two supporting point

精準度：0.002mm以內

TIR Less than 0.002mm

檢測頂尖的尖部跳動精度時，必須在頂尖頂緊工件的狀態下進行打表。

Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

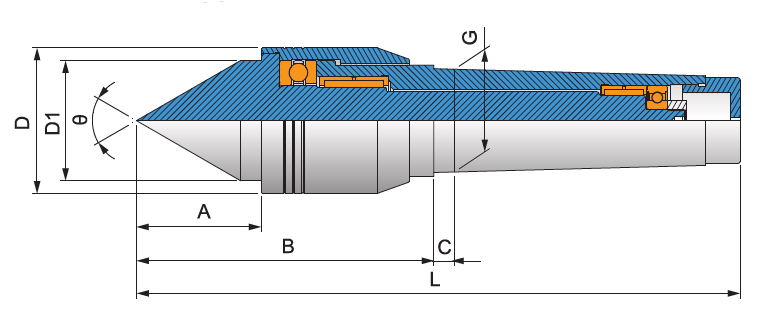

規格 / Specification      單位/ UNIT：mm

型式/外表尺寸 Model/Spec	A	B	C	D	D1	G	L	?	軸承最高轉數 Max. RPM	軸承徑向力 （載重） Max. radial load	軸承軸向力 （推力） Max. axial thrust force
F362-2	28	75	6	32	23	17.780（MT2)	144	60゜	4,000rpm	400kg	1,000kg
F362-3	36	91	8	41	35	23.825（MT3)	178	60゜	3,500rpm	1,200kg	1,500kg
F362-4	41	100	9	48	40	31.267（MT4)	208	60゜	3,500rpm	1,400kg	1,900kg
F362-5	54	134	9	63	52	44.399（MT5)	269	60゜	3,000rpm	2,200kg	2,500kg

備注：
本頂針指定使用SKF-LGMT2專用潤滑油，請勿使用其他不同成分之潤滑油。
產品型號中有“A”的表示頂針有附螺帽
徑向力數據參考：加工件重量+車削力量
配件中的頂針子，型號有“A”的為加長型頂針子。
軸向力據參考：尾座油壓壓力數據
非標需求可定制
保留技術更改的權利

Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.

配件詳情頁/Accessories Page
頂尖技術要點與使用說明/Center technical user manual
