類型:替換式系列
Type: Interchangeble live center
負荷:重
Duty: Heavy
適 用:CNC車床、高速車床及其他機床。
Application CNC lathe and high speed lathe or other lathe.
用 途:適用長度400mm以內,一般強力車削加工。
Working Usage Applicable for the length less than 400mm ordinary strong turning process.
結 構:採用雙列滾珠精密軸承、止推軸承、滾針軸承特殊設計製成。
Structure Combination of double row ball precise bearing and thrust bearing and needle bearing.
選 配:SC-65-H-4A/5A, Y型扳手, 65型大子, 65型沖子
Accessories: For SC-61-H-4A/5A, Y spanner and 65 type Tips and 65 type punch
精準度:0.005以內
TIR Less than 0.005mm

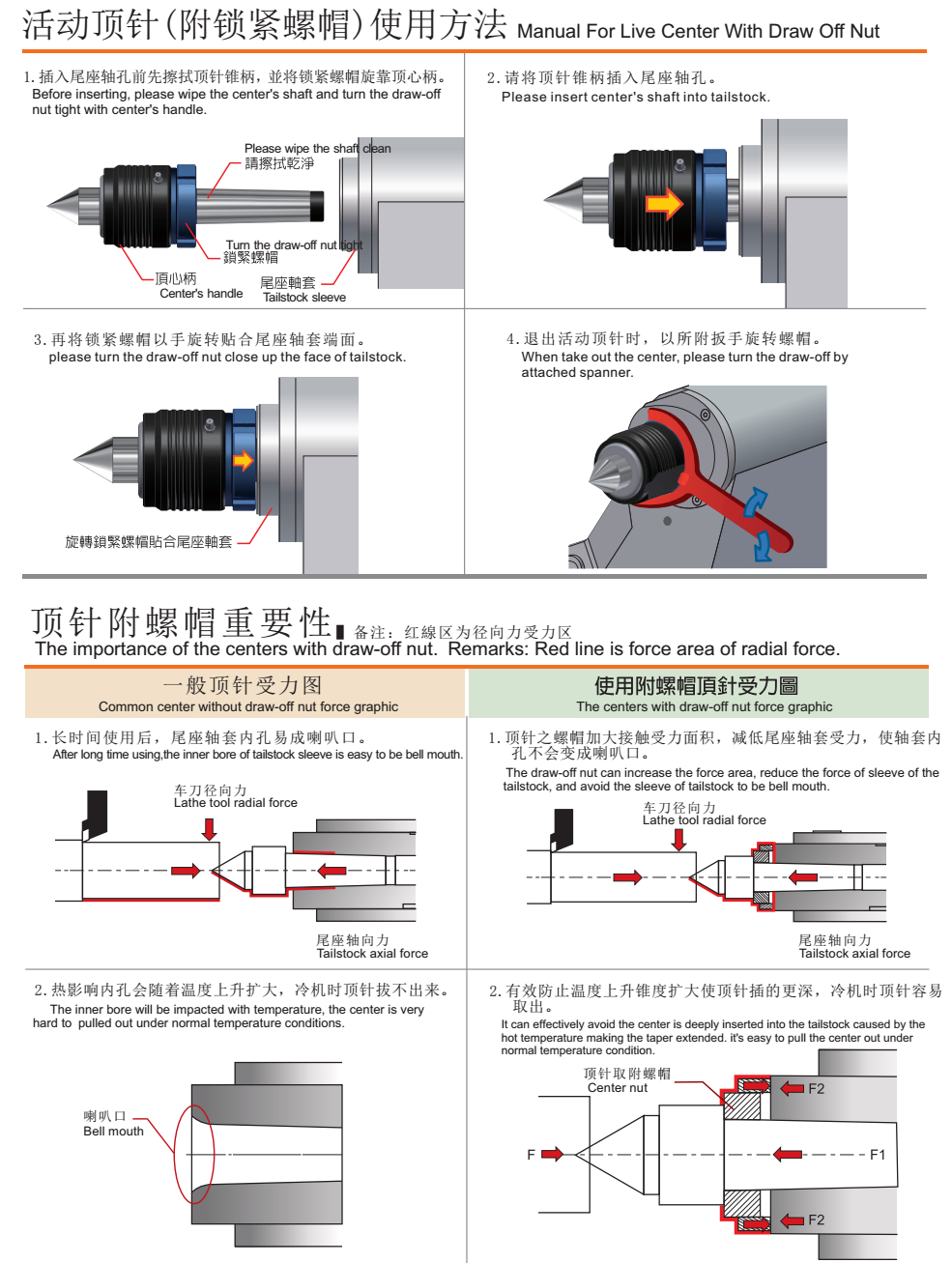

檢測頂尖的尖部跳動精度時,必須在頂尖頂緊工件的狀態下進行打表。
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
另有同規格輕負荷(S型,無螺帽),可改善細長工件易變形問題
There is S model of light duty type, same spec, which can improve the issue of deformation of processing slender workpiece

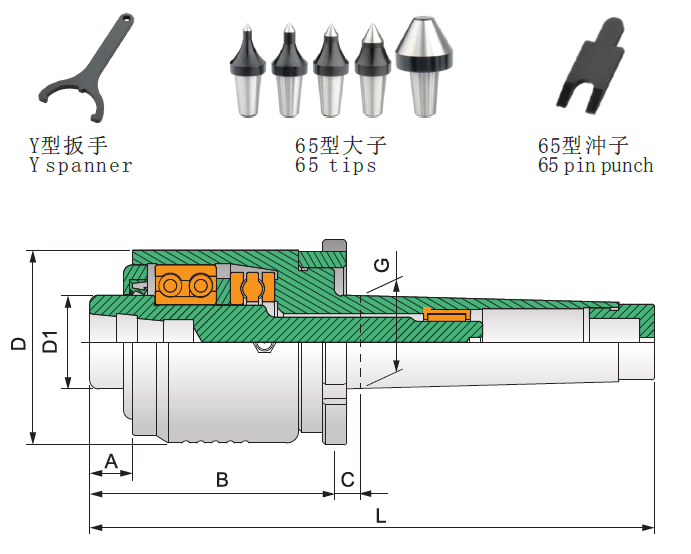

規格 / Specification 單位/ UNIT:mm
型式/外表尺寸 Model/Spec |
A | B | C | D | D1 | G | L |
軸承最高轉數 Max.RPM |
軸承徑向力 (載重) Max. radial load |
軸承軸向力 (推力) Max. axial thrust force |
---|---|---|---|---|---|---|---|---|---|---|
SC-65-H-4A | 14 | 82 | 9 | 62 | 31.2 | 31.267(MT4) | 190 | 4,000rpm | 1,430kg | 2,700kg |
SC-65-H-5A | 14 | 82 | 9 | 62 | 31.2 | 44.399(MT5) | 217 | 4,000rpm | 1,430kg | 2,700kg |
