超薄型夾盤之特色：
1.輕、薄、短小的設計，適用于工件量測夾持。
2.直接轉動旋盤，免于使用板手旋轉干涉。
3.鋼制本體，耐用性甚佳。
4.夾爪正反夾持兩用設計，操作方便。
5.2"最小工件夾持0.8mm.

SUPER THIN CHUCKS
1.By the compactness comes from "Light Thin,Short,Small" designing concept; the chucks are the most fitting to hold work pieces for measuring.By the compactness comes from"Light, Thin and Small" designing concept,the chucks are most fitting to hold workpieces for measuring.
2.Just rotate the chuck knob directly for gripping and loosening,a handle is not necessary to be used.Rotating the chuck knob directly for gripping and loosening, the handle is not necessary to be used.
3.Chuck body is made of very durable steel.The chuck body is made of very durable steel.
4.Jaws can be reversibly used; gripping of various sizes becomes much convenient.Jaws can be reversibly used. Gripping for various sizes becomes much convenient.
5.2" chucks can even grip up to the smallest size of 0.8mmThe 2"model chuck can even grip the small OD size of 0.8mm.

規格 / Specification  單位/UNIT：mm

型式/規格 MODEL/SPEC	外徑夾持范圍 O.D.Clamping Range mm	內徑夾持范圍 I.D.Clamping Range mm	凈重 Weight kg
SE-02	?0.8-?63	?23-?58	1.2
SE-03	?1-?81	?31-?70	2.9
SE-04	?1-?100	?36-?90	4.3
SE-05	?1.5-?116	?43-?106	6.2
SE-06	?1.5-?160	?52-?148	11.1

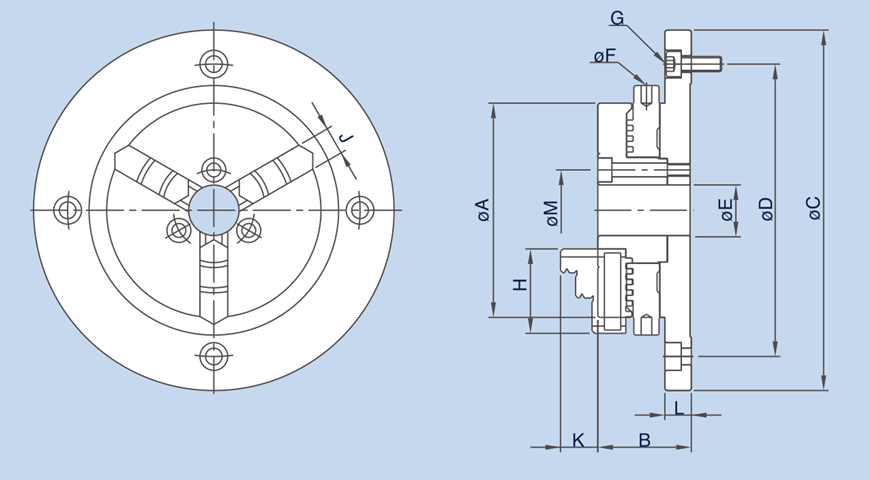

型式/規格 MODEL/SPEC	A	B	C	D	E	F	G	H	J	K	L	M
SE-02	63	28	118	100	16	4	4-M5x0.8P	27	8	13	8	26
SE-03	85	37	143	116	20	4	4-M6x1P	35	11	15	10.5	32
SE-04	110	39	168	140	26	5	4-M6x1P	42	14	19	10	40
SE-05	130	45	202	168	32	6	4-M8x1.25P	50	16	21	11.5	49
SE-06	160	52	248	208	50	8	4-M10x1.5P	65	19	26	15	70

保留技術更改的權利,恕不另行通知 Subject to technology changes without prior information
非標需求可定做 Non-standard requirements can be made
